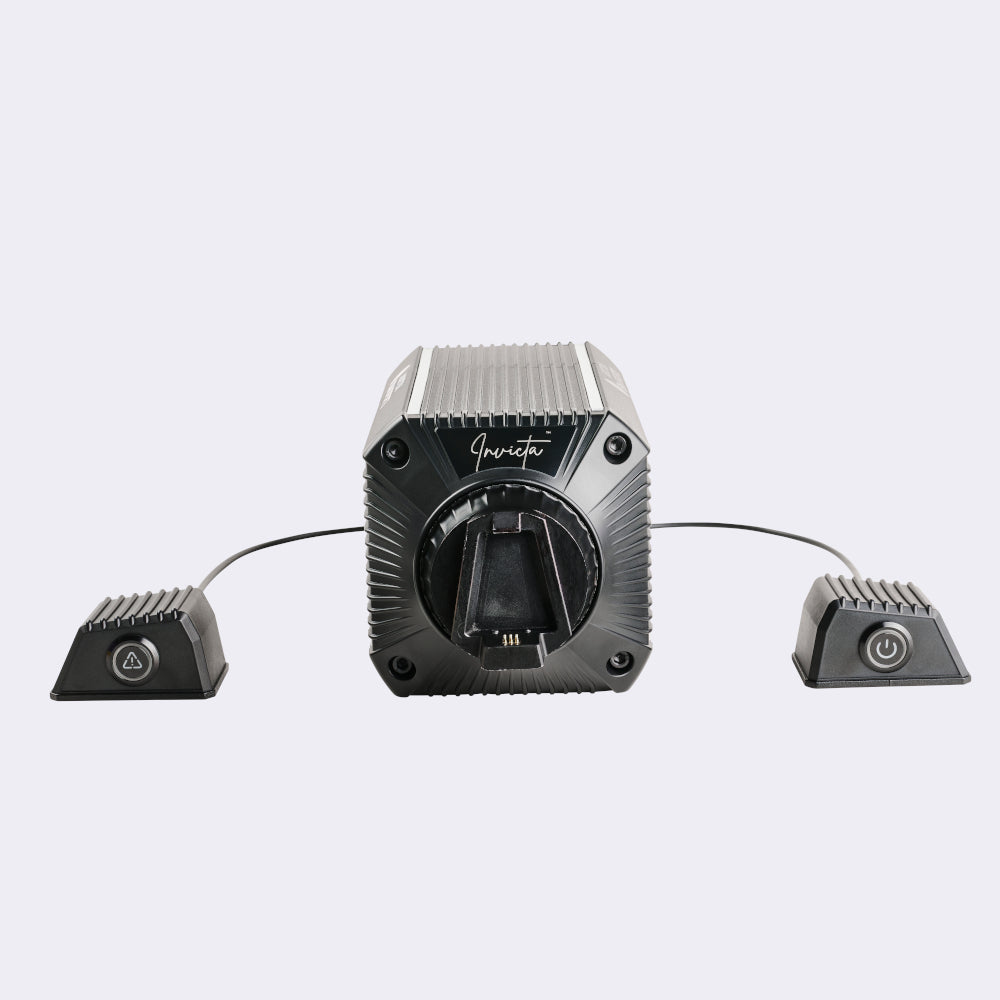

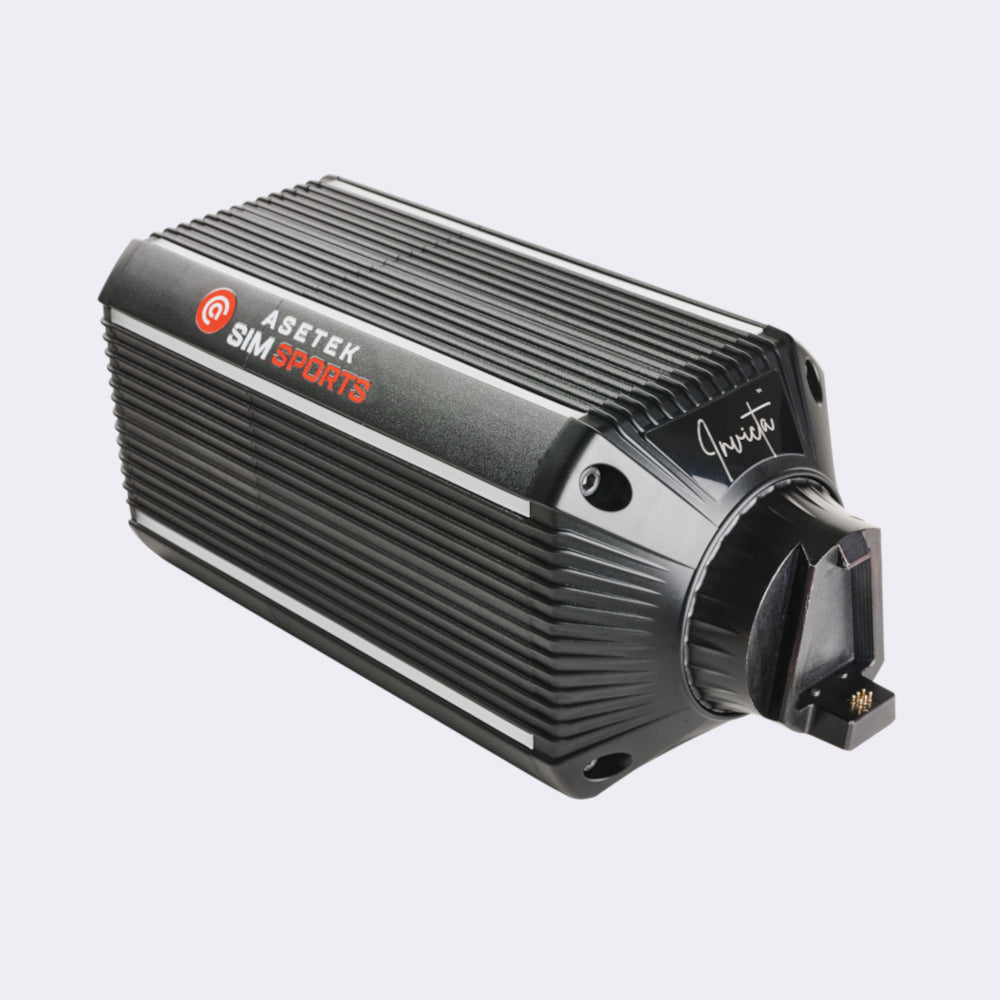

Asetek Invicta Wheel Base

True to the spirit of our other products, at Asetek SimSports®, you will get the same quality, durability, engineering excellence – and most importantly – the same user experience, independent of whether you buy our entry-level La Prima™ series or our top-tier Invicta™ products. Each wheelbase from 12-27Nm features a high-end 22-bit encoder, slipring, and electronics providing an unrivaled driving experience, leaving cogging and lagging in ancient history. All vital parts are of course made of aluminum and steel.

All Asetek SimSports® wheelbases provide smooth, super responsive, and precise feedback to the driver, where you will feel even the smallest bumps and curbs on the road. As an example - each of our wheelbases has a resolution of 0,000085 degrees or roughly 4.000.000 steps in just one revolution of the wheel! In other words, with an Asetek SimSports® wheelbase, you do not have to choose between a true
high-fidelity driver experience and a low price. You can get it all!
As all wheelbases are designed from the ground up, we have been able to develop an extremely compact and flexible form factor accommodating any rig and need. The wheelbase will serve as the central hub in your simulator, where you can connect your Asetek SimSports® pedals, wheels and future peripherals with up to 5 USB-S ports in the rear.

In its simplest mounting form (default from factory), the bases come with T-nuts pre-installed in bottom groves enabling the motor to slide back and forth in your rig without installing long and expensive steering wheel spacers that ultimately can compromise the life and reliability of your wheelbase. For all wheelbases, we have developed mounting options for any rig ranging from a table clamp solution, bottom mount, side
mount and all the way to our integrated front mounts.

Wheelbase Specs
Tech specs

 Exquisite, radical, and minimalistic Danish industrial design
 Made in Denmark
 Anodized extruded aluminum housing
 Direct Drive Force Feedback
 Peak Torque of 27Nm
 Encoder resolution: 22bit / 0,000085 degrees / 4.000.000 steps
 RGB LEDs that can be adjusted, dimmed or completely turned off in software
 Asetek SimSports® Quick Release
 400w power supply
 Slipring designed and tested to +200.000.000 rotations


Software Features


 Setup and save profile presets – Customize your settings to fit your car, track and conditions
 Adjust steering range, bumpstop hardness and bumpstop range
 Adjust Overall Force, Basic Damping and Basic Smoothing

Dimensions

Height: 133mm
Width: 132mm
Length (Incl. Quick Release): 327mm
Weight: 11,3kg
